Z Type Stretching Elements
8 February 2022GK-K Type Stretching Elements
8 February 2022
The GK-C type tensioner handle is used to provide the necessary stretching and positioning in long chains by attaching Z-type chain gear on both sides. The body and inner part consist of steel welded parts. The bolt under the body is tightened into the BS type or a different fitting. Installation angle stabilizing is performed with the effect of friction force. It is recommended to install it with TS type positioning part if it is to be operated at upper tension values or under high variability tension.
• Easy mounting
ESTA OSCILLATION
• Long-lasting
ESTA OSCILLATION
The GK-C type tensioner handle is used to provide the necessary stretching and positioning in long chains by attaching Z-type chain gear on both sides. The body and inner part consist of steel welded parts. The bolt under the body is tightened into the BS type or a different fitting. Installation angle stabilizing is performed with the effect of friction force. It is recommended to install it with TS type positioning part if it is to be operated at upper tension values or under high variability tension.
• Easy mounting
ESTA OSCILLATION
• Long-lasting
ESTA OSCILLATION

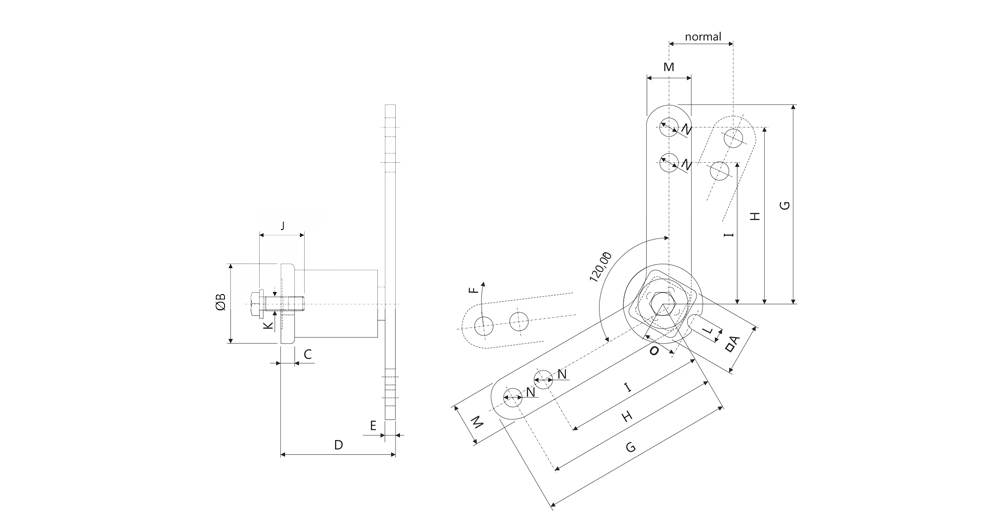

Model
Type | A
| ØB | C | D | E | M | G | H | I | J | K | L | ØN | O | Ağırlık
Weight
(Kg) |
| GK-C 16 | 30 | 45 | 9 | 67 | 6 | 25 | 112,5 | 100 | 80 | 25 | M8 | 8,5 | 10,5 | 20,8 | 0,55 |
| GK-C 18 | 35 | 58 | 11 | 81 | 8 | 30 | 115 | 100 | 80 | 30 | M10 | 8,5 | 10,5 | 25,3 | 0,93 |
| GK-C 25 | 40 | 68 | 14 | 107 | 8 | 45 | 152 | 130 | 100 | 40 | M12 | 10,5 | 12,5 | 29,5 | 1,07 |
| GK/GK-C/GK-K - Malzeme / Material | | | |
Model / Type (GK/GK-C/GK-K)
| 16-18 | 25-35 | 45-50 |
Çelik profil gövde
Welded steel profile body | X | | X |
Sfero döküm gövde
Nodular cast body | | X | |
Çelik çubuk iç parça
Inner square in welded steel structure | X | | |
Çelik profil iç parça
Inner square in welded steel profile | | X | X |
