ES-C type oscillation suspension bodies are made of aluminum alloy profile and steel profiles welded from internal parts. The oscillating element is used in applications that will serve as hangers-on for connecting the system. The ES-C type oscillation suspension connection is provided by creating bolt connection with the flans in the upper and lower body. It can be used by connecting directly to the feeder or body of the system. With its low natural frequency, reducing system-to-ceiling vibration transmission to almost zero.
Easy mounting
ESTA OSCILLATION
Long-lasting
ESTA OSCILLATION
ES-C type oscillation suspension bodies are made of aluminum alloy profile and steel profiles welded from internal parts. The oscillating element is used in applications that will serve as hangers-on for connecting the system. The ES-C type oscillation suspension connection is provided by creating bolt connection with the flans in the upper and lower body. It can be used by connecting directly to the feeder or body of the system. With its low natural frequency, reducing system-to-ceiling vibration transmission to almost zero.
Easy mounting
ESTA OSCILLATION
Long-lasting
ESTA OSCILLATION

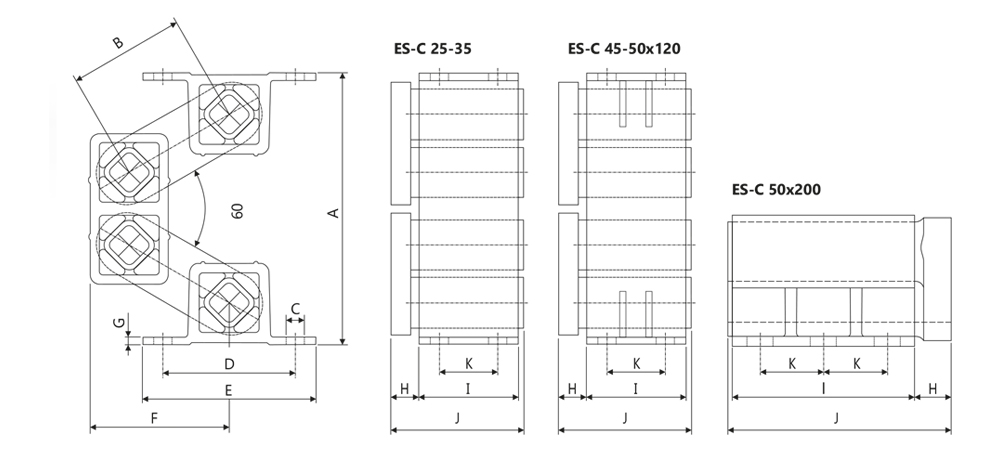

Model
Type | M
[ in N ] | A
Yüksüz
Unloaded
mm | A
Max Yük
Max Load
mm | F
Yüksüz
Unloaded
mm | F
Max Yük
Max Load
mm | B | C | D | E | G | H | I | J | K | K | Ağırlık
Weight
(Kg) |
| ES-C 25 | 520 - 1300
| 164 | 201 | 84 | 68 | 70 | Ø11 | 80 | 105 | 4,5 | 17 | 60 | 80 | 35 | 35 | 2,15 |
| ES-C 35 | 1250 - 2600 | 223 | 273 | 114 | 93 | 95 | Ø13 | 100 | 125 | 6 | 21 | 80 | 105 | 40 | 40 | 4,77 |
| ES-C 45 | 2100 - 4300 | 268 | 326 | 136 | 113 | 110 | Ø13x20 | 115 | 145 | 8 | 28 | 100 | 132 | 65 | 65 | 13,6 |
| ES-C 50x120 | 3600 - 8500 | 288 | 352 | 147 | 119 | 120 | Ø18x28 | 130 | 170 | 10 | 40 | 120 | 165 | 60 | 60 | 22,0 |
| ES-C 50x200 | 6100 - 14200 | 288 | 352 | 147 | 119 | 120 | Ø18x28 | 130 | 170 | 10 | 40 | 200 | 145 | 70 | 70 | 31,0 |
M = Yük kapasitesi N Montaj / M = Load capacity in N Per mount
Alüminyum profil gövde / Aluminium profile body - Çelik profil iç parça / Welded steel profile body
