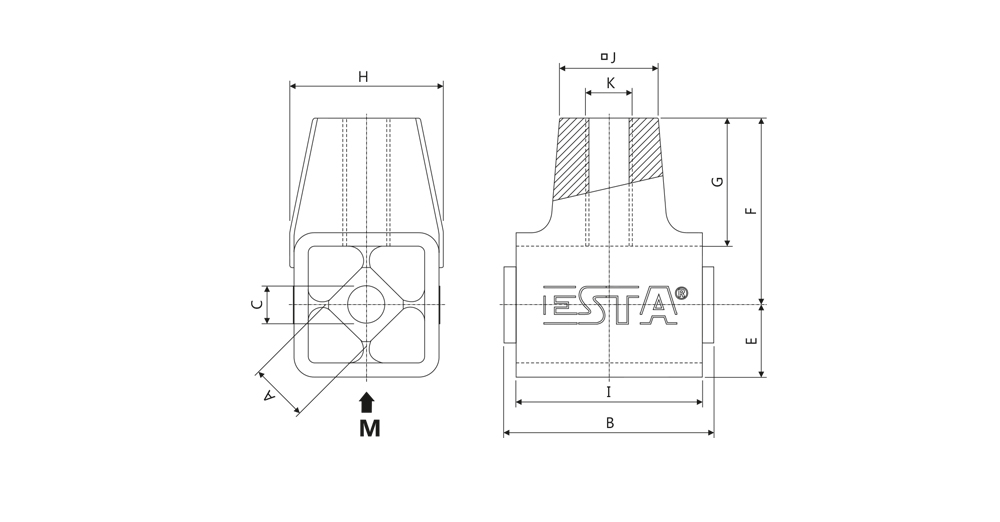

Model Type | M [ N ] | A | B | C | E | F | G | H | I | j | K | Ağırlık Weight (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
AG 18 AG 18L | 650-1700 | 18 | 65 | 13 | 23 | 60 | 42 | 50 | 60 | 28 | M16 M16L | 0,74 |
AG 25 AG 25L | 1400-3200 | 25 | 90 | 16 | 31 | 80 | 55 | 66 | 80 | 42 | M20 M20L | 1,74 |
AG 35 AG 35L | 2800-5100 | 35 | 110 | 20 | 41 | 100 | 67 | 88 | 100 | 48 | M24 M24 | 3,50 |
AG 45 AG 45L | 4700-7500 | 40 | 130 | 20 | 45 | 105 | 70 | 96 | 120 | 60 | M36 M36 | 6,00 |
AG 50 AG 50L | 6200-15800 | 50 | 210 | M12x4 | 55 | 130 | 85 | 117 | 200 | 80 | M42 M42 | 12,00 |

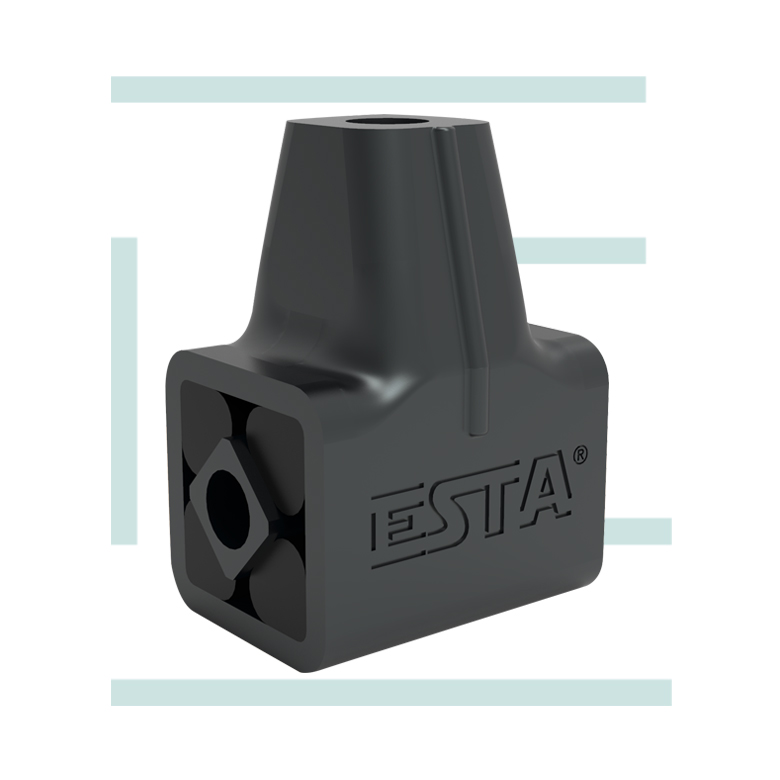

Type AG installation
On type AG oscillation elements,
1. For screen circular movement, the angle between the oscillating elements should be 90°, Maximum oscillating angle should be within ±2° (α=±2°).
2. For screen elliptical movement, the oscillating elements should be parallel,
Maximum oscillating angle should be within ±2° (α=±2°),
Maximum oscillating angle should be within ±5° (β=±2°).
The connection rod, nuts and spring washers should be supplied by the customer. The radius of the screen circular motion is determined by the length of the connection rod and the existing centrifugal force. The oscillating element on the screen side should be mounted on a height which is very close to the center of gravity of the screen or on a slightly lower height. Having right hand and left hand threads on AG oscillating elements will allow very easy adjustment of the length of rocker arms. The fixation of inner square section on AG 18 and 25 types should be managed by M12 and M16 bolts
